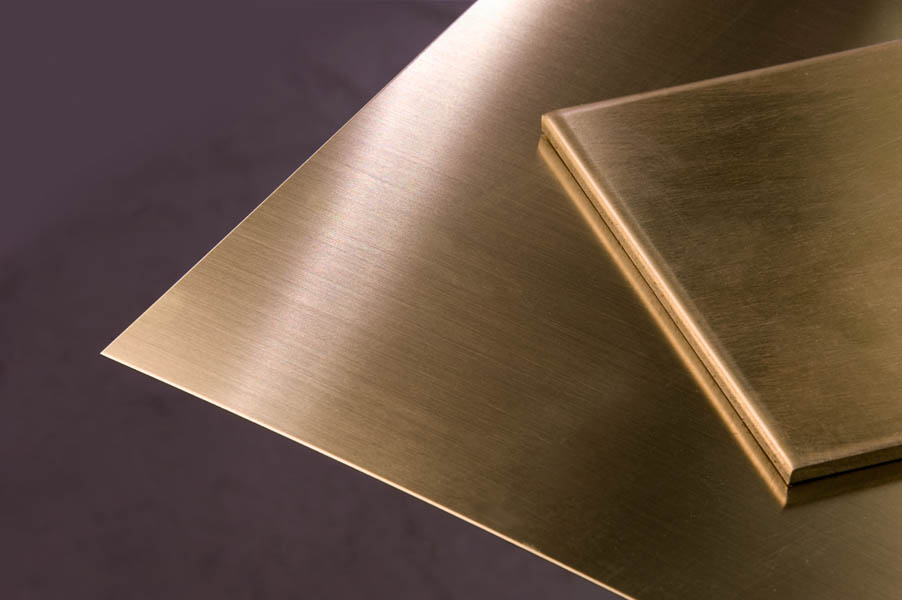

Brass sheet and strip
63B:
Excellent workability and drawability
Good for being punched and bent
Specially applicable to electrical usages
65B:
Specially applicable to automobile radiators and deep drawing works
70B:
Excellent workability and drawability
Specially applicable to deep drawing works
Other grades of copper alloys may be produced on request
|
Copper Sheet Strip |
Strip |
Sheet |
|
|---|---|---|---|
|
Thickness (mm) |
Width (mm) |
Length (mm) |
|
|
0.04 to and include 0.15 |
15 to 200 |
_ |
|
|
0.15 to and include 0.3 |
15 to 610 |
||
|
0.3 |
15 to 660 |
300 to 320 600 to 660 |
700 to 2000 |
|
0.3 to 3 |
|||
|
3 to and include 6 |
20 to 660 |
||
|
8 to and include 18 |
_ |
660 |
500 to 4000 |
|
18 to and include 100 |
1000 to 7000 |
||
The following standards comply for brass sheets strips:
DIN 1787
Copper - Half-finished Products.
DIN 17660
Wrought copper alloys; copper-zinc alloys; (brass); (special brass); composition.
DIN 17670
Wrought copper and copper alloy p late, sheet and strip.
DIN EN 1652
Copper and copper alloys - Plate, sheet, strip and circles for general purposes.
DIN EN 1653
Copper and copper alloys - Plate, sheet and circles for boilers, pressure vessels and hot water storage units.
ASTM B248M-07
Standard Specification for General Requirements for Wrought Copper and Copper-Alloy Plate, Sheet, Strip, and Rolled Bar
ASTM B36/B36M-08a
Standard Specification for Brass Plate, Sheet, Strip, And Rolled Bar
JIS H 3100:2006-02-20
Copper and copper alloy sheets, plates and strips .
BS 2875:1969
Specification for copper and copper alloys. Plate
BS EN 1652:1998
Copper and copper alloys. Plate, sheet, strip and circles for general purposes
BS EN 1653:1998
Copper and copper alloys. Plate, sheet and circles for boilers, pressure vessels and hot water storage units
